Bay Area Lighting and Sound is now providing suspended
Line Array Active Hanging Speakers from the D-Line Series from RCF in Italy.

Our skilled sound engineers are A1 Skilled and experienced in providing the very
best services possible.

Your next corporate, concert or private event is guaranteed to be tuned to
perfection.

All of our line array series and packages come with the setup crew, sound engineer
and delivery.

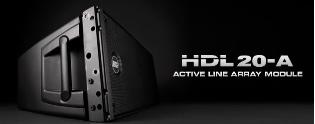

RCF HDL-20A SUSPENDING LINE ARRAY ACTIVE SPEAKER

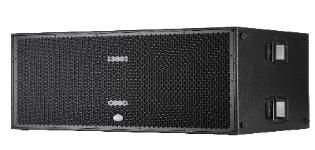

RCF TOURING SUB 8006 -AS 5000 WATT ACTIVE DUAL 18" SUBWOOFER




















The careful acoustic design, RCF transducers, and composite cabinet make the HDL 20-A & SUB 8006-AS
ideal in live sound reinforcement and reliable installed situations.

The HDL 20-A system is powered from a 1200W (peak) 2-way digital amplifier and sound is processed
from a powerful DSP.  The processing includes cluster and HF projection correction and special new
presets for indoor and outdoor high curving situations.  The system features state-of-the-art RCF
transducers, two powerful 10" for a solid bass reproduction and a large format 3" voice coil compression
driver to deliver vocal clarity and high definition with an incredible dynamic.

The large-format compression driver RCF CD850 is an advantage of the HDL20-A.  All the vocal range is
reproduced from this driver.  Superior efficiency and clarity, higher pressures, and better coverage.

The HDL20-A features configurable mechanics; angles between cabinets are selectable with 2 degrees
resolution.  In comparison with many competitors products with fixed curving, with HDL20-A is possible to
create real J-shaped or spiral arrays. The D-Line Flybars can hold up to #16 HDL-20A each.

The RCF Precision transducers in the HDL-20A offer high power handling.  The high-power woofer delivers
accurate punchy bass and the custom-made compression driver offers a transparent mid-range and
extreme fidelity.

D LINE cabinets are molded on a special polypropylene composite material  with real birch wood framing
all designed to dampen down vibrations, even at maximum volume settings.  From molding to the final
texture, D LINE offers reliability and strength for intensive use on the road.

Features:
•1200W peak, 600W RMS
•2x10" woofer, 2.5" voice coil
•2" compression driver, 2" voice coil
•SPL power is stable at very high levels
line
bay area lighting and sound services
Toll Free 1-866-767-7623
line
special event lighting


Medium Suspended Line Array System Package
Coverage Area for  148.5 Feet Long x 11.5  feet  Wide with stage size of 40
feet.

12- HDL 20A Audio Line Array Speaker -Self Powered
8 -    HDL SUB 8006-AS 5000W Active Subwoofer Dual 18" or JBL SRX728
2-     FLY BAR HDL
20 - AC Rain Cover for amp on back of HDL-20A and SUB 8006-AS
6-     QSC KW122 1000W Stage wedge floor monitors



2- ST180 or  Genie -ST25 18FT. Material  Lifts for Truss or lift  Speakers
2 -10 FT Box truss if needed. More truss may be an additional fee.
1- M7 or LS932 Digital  Sound Mixer
1- 100-300 Ft.  Digital Audio Snake
1- Power cable assortment & XLR assortment
2- Wireless Mics with EQ
1-Processing Rack
1- Sound Engineer
2-Stage Hands


$5000.00 Per Day or Weekend
Delivery and Setup included
3 Phase Power required. We do supply our own distribution boxes to power source.
MADE IN ITALY


Small to Medium Line Array or stacked System Package
Coverage Area for 115 Feet Long x 115 feet Wide with stage size of 40 feet.

8- HDL 20A Audio Line Array Speaker -Self Powered
4 -  HDL SUB 8006-AS 5000W Active Subwoofer Dual 18" or JBL SRX728
2-  FLY BAR HDL
12- AC Rain Cover for amp on back of HDL-20A and SUB 8006-AS
4 - QSC KW122 1000W Stage wedge floor monitors


2- ST180 or  Genie -ST25 18FT. Material  Lifts for Truss or lift  Speakers
2 -10 FT Box truss if needed. More truss may be an additional fee.
1- M7 or LS932 Digital  Sound Mixer
1- 100-300 Ft.  Digital Audio Snake
1- Power cable assortment & XLR assortment
2- Wireless Mics with EQ
1-Processing Rack
1-Stage Hand
1-Sound Tech

$3500.00 Per Day or Weekend
Delivery and Setup included

1/3 Phase Power required. We do supply our own distribution boxes to power source.


Large  Suspended Line Array System Package
Coverage Area for 214  Feet Long x 132  feet Wide with stage size of 40 feet.

24- HDL 20A Audio Line Array Speaker -Self Powered
16 -  HDL SUB 8006-AS 5000W Active Subwoofer Dual 18" or JBL SRX728
2-     FLY BAR HDL
40-   AC Rain Cover for amp on back of HDL-20A and Sub
8 -    QSC KW122 1000w stage monitor wedges


2 or 4 - Electric 1 Ton Chain Hoist Motor with controls
2 -10 FT Box truss if needed. More truss may be additional fee.
2- M7 or LS932 Digital  Sound Mixer
1- 100-300 Ft.  Digital Audio Snake
1- Power cable assortment & XLR assortment
2- Wireless Mics with EQ
1-Processing Rack
1- Sound Engineer
1-Monitor Mixing Engineer
2-Stage Hands


$8500.00 Per Day or Weekend
Delivery and Setup included
3 Phase Power required. We do supply our own distribution boxes to power source.

Monday -Saturday 9:00AM-6:00PM
phone number
Call today or email us for fast quote

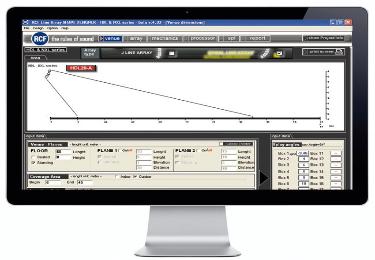

Custom RCF Software for speaker angle
settings and line array configuration
